Steel structure space frame stock yard

spaceframe
May 26, 2021

--

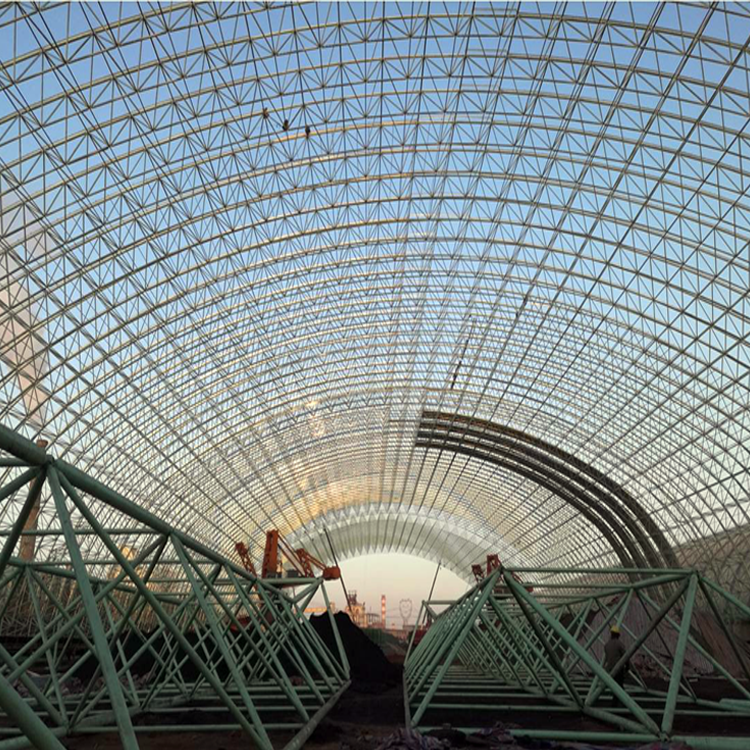

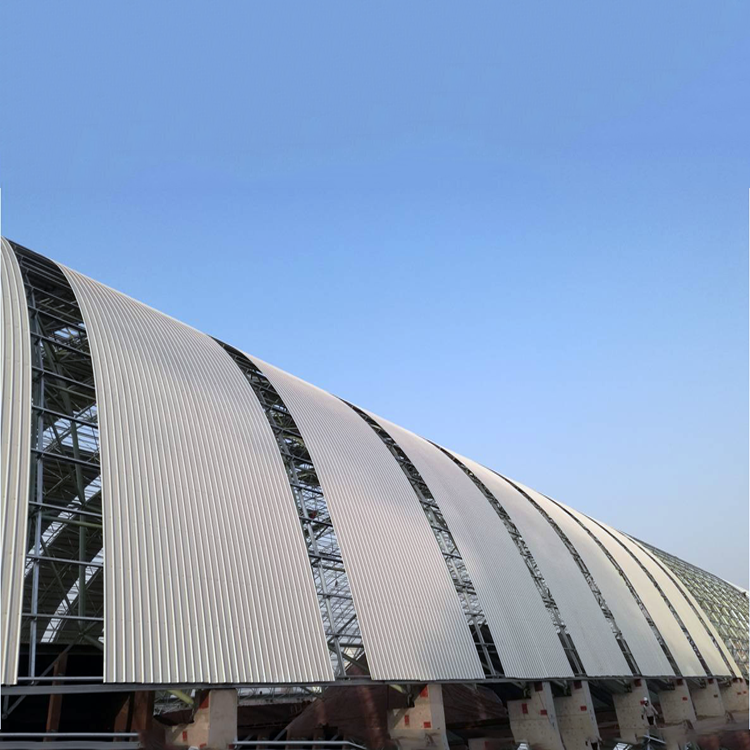

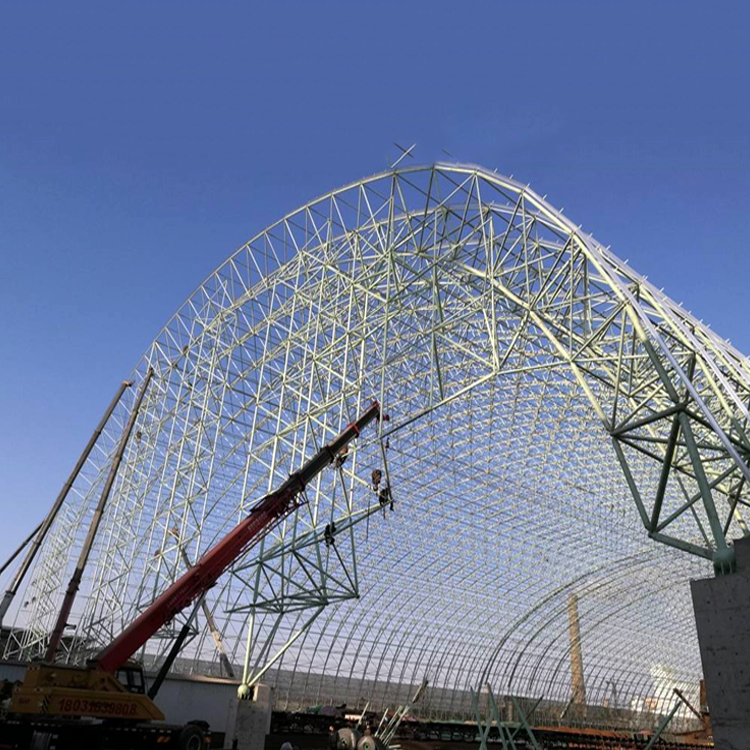

The space frame construction project of the stock yard and the mixing yard is a closed cylindrical reticulated shell shed, which adopts a multi-center cylindrical reticulated shell structure with square cone bolted spherical joints, and is closed by a steel structure. The axis spans of the grid supports are respectively 145m and 92m, and the outer chords are used to support the top of the concrete stepped column. The elevations of the grid are 29.00m and 48.00m respectively. The column spacing in the long direction of the grid is 9m, the space frame size in the long direction is 4.50m
